Steel Look Yorkshire

The Fenestration Network Case Studies

Steel Look Windows in Yorkshire | Harrogate Windows & Doors

PROJECT DETAILS

Harrogate, Yorkshire

February 2025

PROPERTY TYPE:

Detached stone property

PRODUCTS USED:

· 29 Alitherm Heritage aluminium steel look windows (RAL 9005 black)

· 2 Visofold heritage-style bifold doors (5m wide, 5 panes, slimline 94mm sightline)

· 2 Alitherm Heritage aluminium doors with glazing bars and low threshold

· Bespoke triangular steel look window

· Floor-to-ceiling fixed picture windows

· All powder coated RAL 9005 matt black

· Building Regulations Compliant throughout.

Steel Look Windows in Yorkshire – Harrogate Case Study

A striking installation of steel look windows in Yorkshire, with matching bifold and patio doors. Combining traditional Yorkshire architecture with modern glazing, this project demonstrates how Alitherm Heritage systems are the UK’s best selling brand of steel-inspired, Art-Deco and industrial style glazing. A timeless look to an elegant Harrogate home.

Alitherm Heritage Windows and Doors

These distinctive and striking steel look windows in Yorkshire use the tried and tested Alitherm Heritage System. Premium-grade aluminium with professionally applied powder coated finish, sophisticated thermal breaks, high-specification safety glass and premium hardware and components all come as standard. Above all, these windows provide as close as is possible aluminium window that looks like steel.

Alitherm Heritage windows and doors are the UK’s best-selling brand successfully replacing old steel windows and providing the iconic industrial and metal inspired style for nearly twenty years.

Black steel look windows for a Harrogate Home

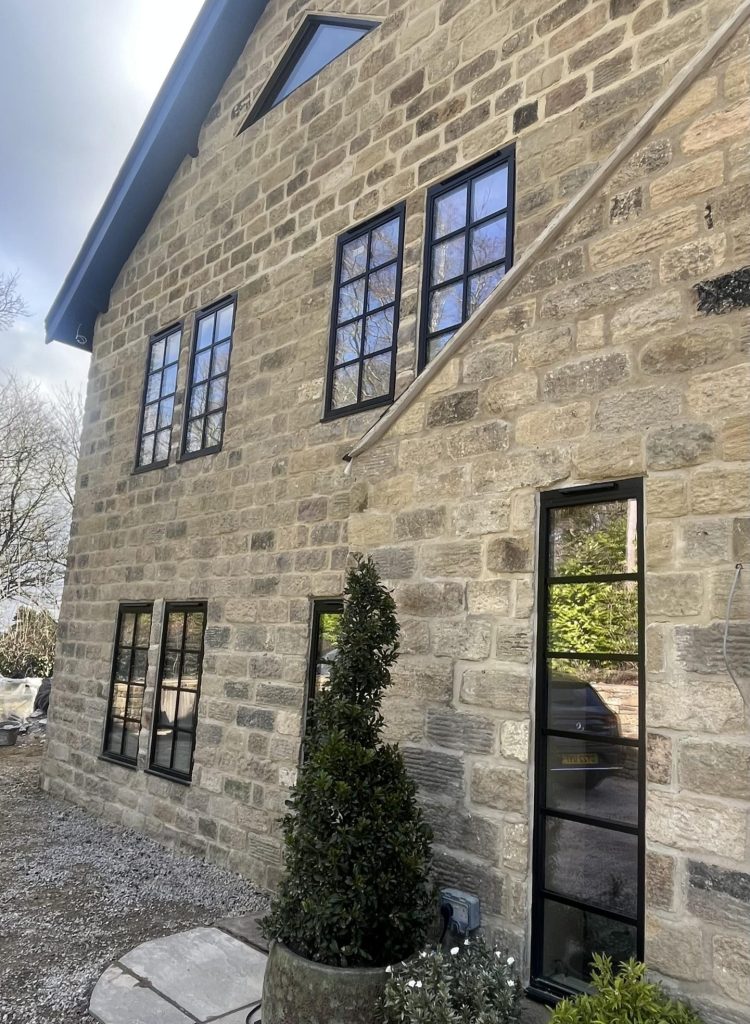

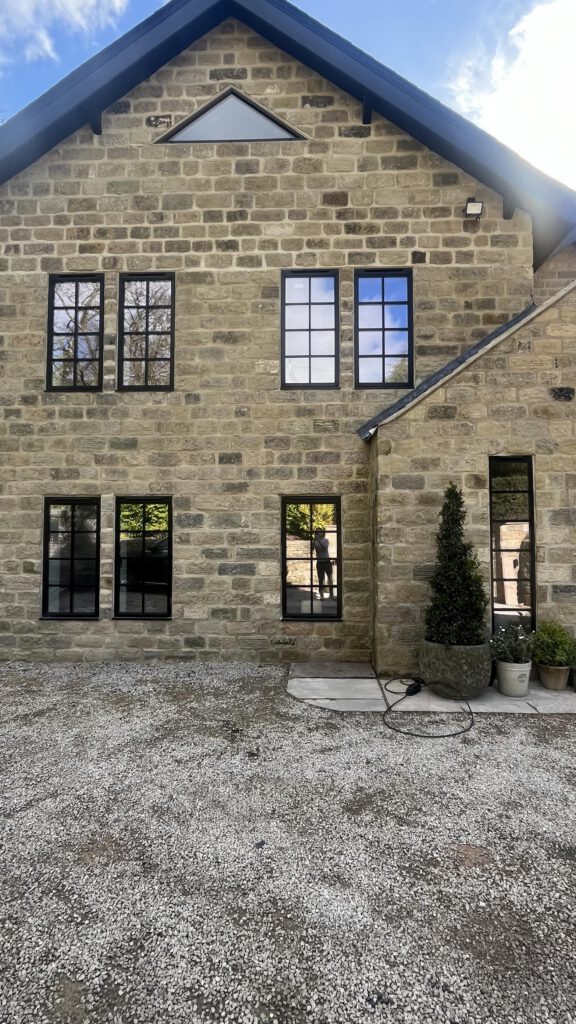

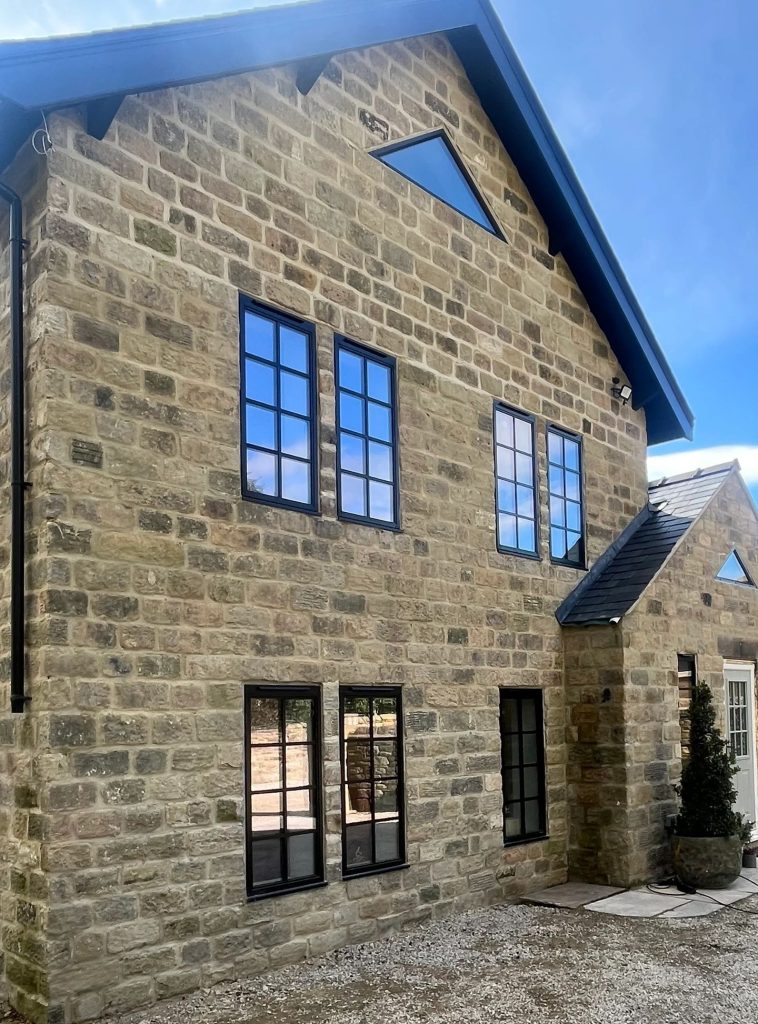

The property features 29 side-hung casement windows, each divided by ultra-slim 25mm glazing bars into a balanced grid of eight panes. Powder coated in the popular RAL 9005 matt black finish, these steel look windows in Yorkshire symmetry and architectural character, while offering the best in modern aluminium window quality, performance, security and lifespan.

To complement the casement design, we also installed floor-to-ceiling fixed picture windows with horizontal glazing bars, as well as a bespoke triangular steel look window in the roof space. Together, these bring more natural light into the home while keeping the exterior consistent with the original stone construction.

Every window is fitted with 28mm insulated glass units, incorporating a soft-coat low-emissivity coating, warm edge spacers and argon gas fill. Trickle vents have been seamlessly integrated into slimline head extensions, ensuring Building Regulations compliance without compromising aesthetics.

Slimline heritage bifold doors

Two 5m wide, five-panel bifold doors were installed at the rear of the property, opening the living space to the gardens. Manufactured from the Visofold heritage-inspired system, these bifolds achieve one of the slimmest sightlines on the market at just 94mm.

Unlike other products that simply apply bars to the glass, the Visofold system replicates the authentic stepped detail of traditional steel doors. The result is a bifold door that feels true to the heritage style while delivering modern performance, security, and effortless operation.

These premium bifold doors complement the window perfectly and come with a convenient traffic door, enabling easy entry and exit without having to fold all the panels back.

Heritage style aluminium doors

At the side and rear, two Alitherm Heritage aluminium doors provide secure and elegant access points. Slimline glazing bars, period lock bodies, low thresholds and trickle vents all contribute to a door that is both faithful to the steel-inspired look and designed to last.

As with the windows and bifolds, all glass units are toughened for safety and high security multipoint locks with key cylinders come as standard.

Why choose Alitherm Heritage?

The Alitherm Heritage system continues to be the UK’s leading choice for steel look windows and doors. With authentic design, advanced thermal performance, and long-term durability, it remains the best alternative to original steel. Matching options such as Smarts Aluspace internal doors further extend the design inside the home.

Overcoming installation challenges

This project was not without challenges. Restricted access to the property and coordinating with multiple trades on site required careful planning and management. At the Fenestration Network, we have a nationwide network of fully trained installers and with numerous similar installations completed, a lot of experience.

Our professional survey and expert product knowledge, combined with precision installation means, this installation of steel look windows in Yorkshire was completed on schedule and to the highest standard, with an excellent result for the homeowner, who was delighted with the overall result.

The Trusted Fenestration Network White Glove Service

Our White Glove Service is our promise to take care of everything for you. From the moment you contact us for a quotation, and choose your windows or doors, we handle the process end-to-end — product advice, survey, installation, and aftercare.

You benefit from the reassurance of national expertise backed by local installers who know your area. Every detail is managed with precision, ensuring your new doors and windows are fitted to the highest standard, fully compliant, and supported long after installation.

It’s a complete service designed to give you confidence, convenience, and total peace of mind.
